Star Wiper
Star Wiper Telescopic Type
Product Details

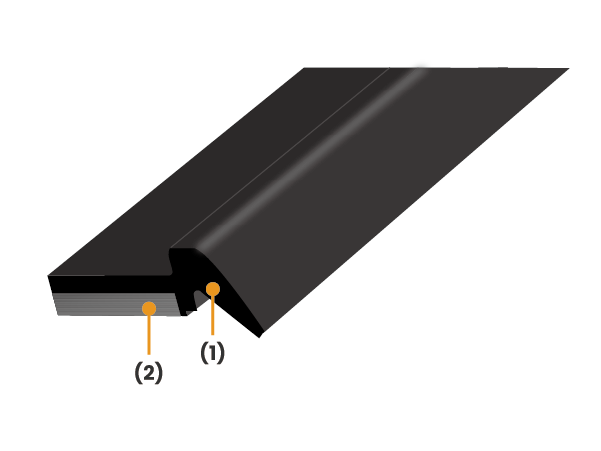

Constituent Materials
-
TR(straight)
(1) NBR rubber
(2) Steel plate
Black anti-corrosion treatment on surface
Features
-
- Contributes to maintaining the machining accuracy of machine tools that require high-precision machining.
- Uses NBR rubber that is oil-resistant and abrasion-resistant, and is highly durable.
- The surface of the steel plate is treated with a rust-proofing agent that complies with RoHS regulations.
- We also offer additional processing such as drilling and cutting.
Application Example

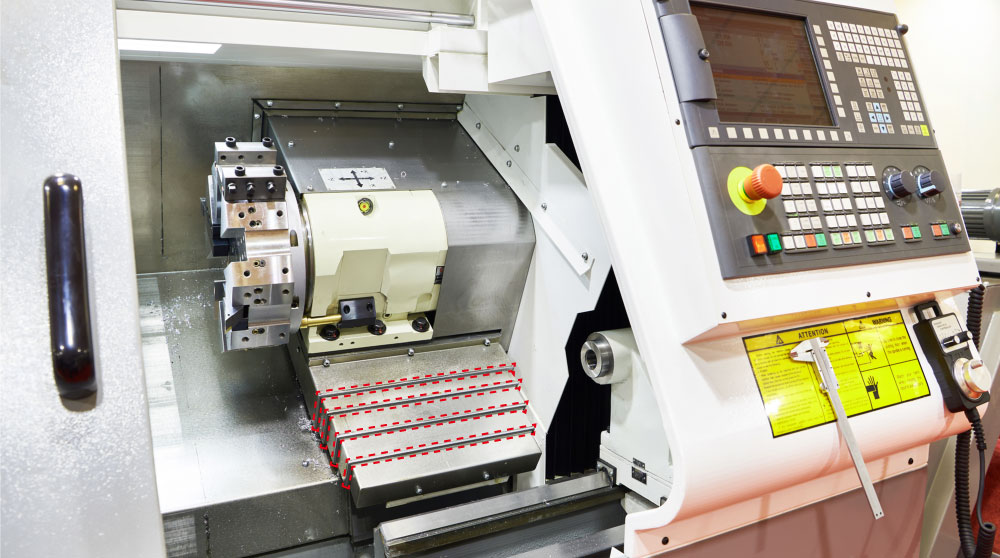

It is used on the sliding surface of a telescopic.
Specification
| Type | Product number | Overall length | Recommended pressing allowance |
|---|---|---|---|
| TR |
TR-8-600 |
600 mm |
1.3 mm |
|
TR-8-1200 |
1200 mm |
1.3 mm |
|
|
TR-10-600 |
600 mm |
1.8 mm |
|
|
TR-15-600 |
600 mm |
1.8 mm |
Caution

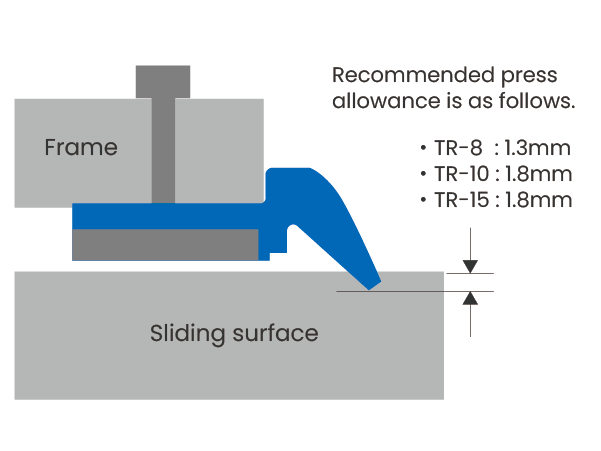

- Consider press amount when designing and ensure the above required clearances are allowed.
- Confirm on assembly drawings, etc. that the press allowance overlaps with the steel plate.
