Star Wiper

Star Wiper Lip Type

  • Star Wiper Lip Typeサムネイル1
  • Star Wiper Lip Typeサムネイル1

This is a lip type star wiper. It is a machine tool wiper with excellent high-level wiping ability and durability, and the long, supple lip is ideal for wiping curved surfaces.

Contact us about this product

Product Details

Constituent Materials

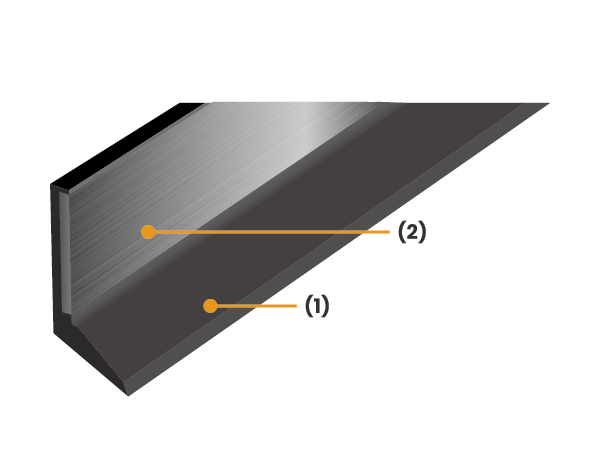

  • FV(straight)

    FV(straight)

    (1) NBR rubber

    (2) Steel plate
    Black anti-corrosion treatment on surface

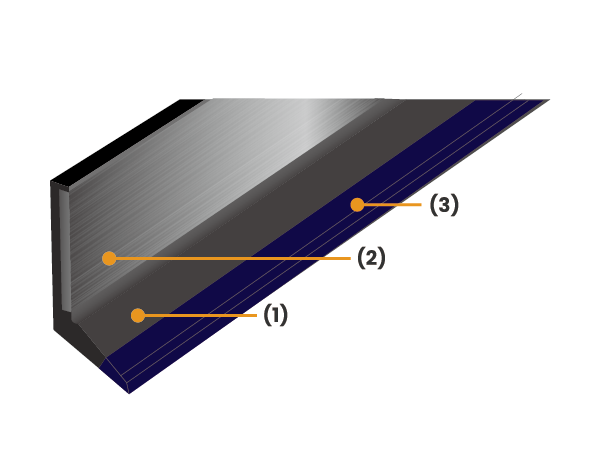

  • FVL(low sliding resistance)

    FVL(low sliding resistance)

    (1) NBR rubber

    (2) Steel plate
    Black anti-corrosion treatment on surface

    (3) Special compounded rubber
    Lowering the coefficient of friction and reducing sliding resistance

Features

    • Contributes to maintaining the machining accuracy of machine tools that require high-precision machining.
    • Uses NBR rubber that is oil-resistant and abrasion-resistant, and is highly durable.
    • The surface of the steel plate is treated with a rust-proofing agent that complies with RoHS regulations.
    • We also offer additional processing such as drilling and cutting.

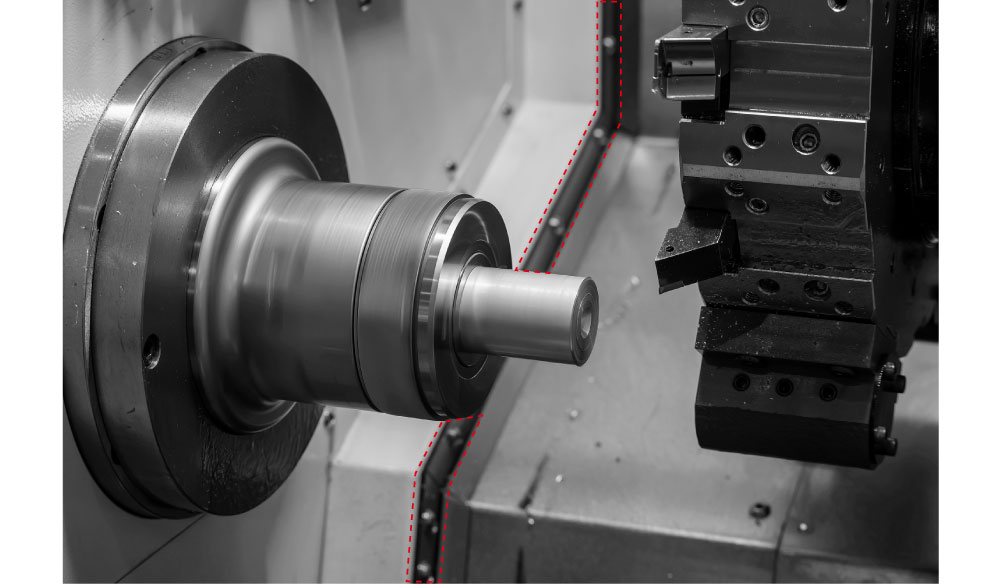

Application Example

This is used on the opening and closing doors of machine tools to ensure that chips and oil do not leak outside.

Specification

Type Product number Sheet Metal Length

FV
(straight)

FV-22-650

650 mm

FV-22-1200

1200 mm
FVL
(low sliding resistance )

FVL-21.5-440

440 mm

FVL-21.5-650

650 mm

FVL-21.5-1000

1000 mm

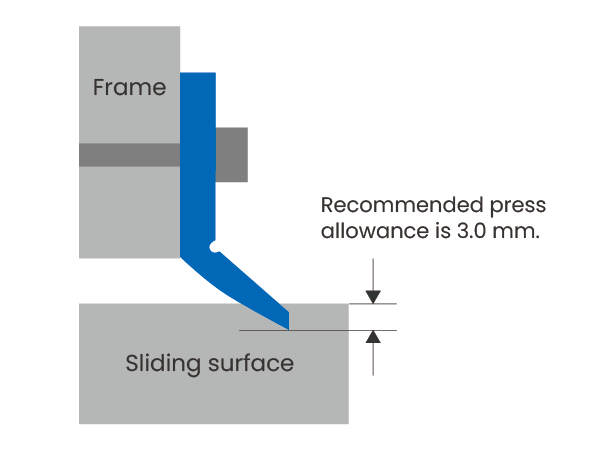

Recommended pressing allowance: 3.0mm

Caution

  • Please make design considering a press allowance of 3.0mm on the part drawing.
  • Confirm on assembly drawings, etc. that a press allowance of 3.0mm overlaps with the steel plate.
