Star Wiper
Star Wiper Cover Type
Product Details

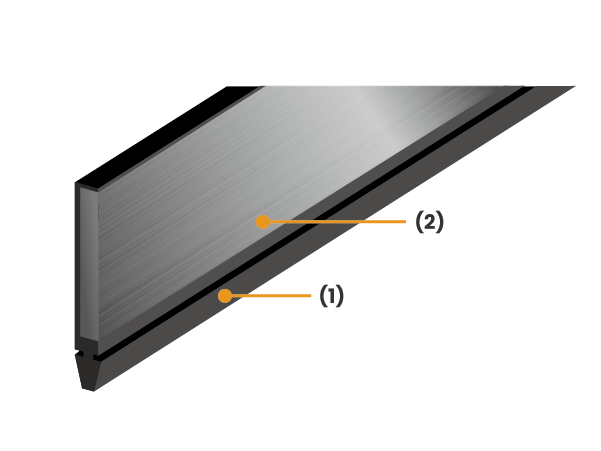

Constituent Materials
-
CV(straight)
(1) NBR rubber
(2) Steel plate
Black anti-corrosion treatment on surface
Features
-
- It has good flexibility to the left and right, and is suitable for scraping open and closing doors.
- It is made of NBR rubber, which is oil-resistant and abrasion-resistant, and is highly durable.
- The surface of the steel plate has been treated to prevent rusting in compliance with RoHS regulations.
- We also accept requests for additional processing such as drilling and cutting.
Application Example

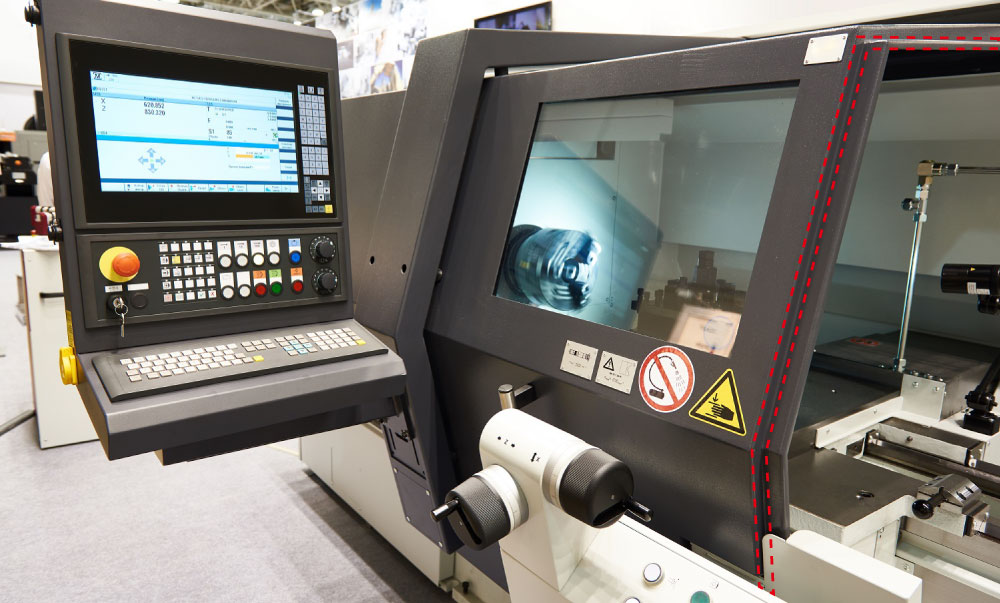

This is used on the opening and closing doors of machine tools to ensure that chips and oil do not leak outside.
Specification
| Type | Product number | Sheet Metal Length | Overall length |
|---|---|---|---|
| CV |
CV-34-20S-700 |
20 mm |
700 mm |
|
CV-34-20S-1200 |
20 mm |
1200 mm |
|
|
CV-25-18S-700 |
18 mm |
700 mm |
|
|
CV-25-18S-1200 |
18 mm |
1200 mm |

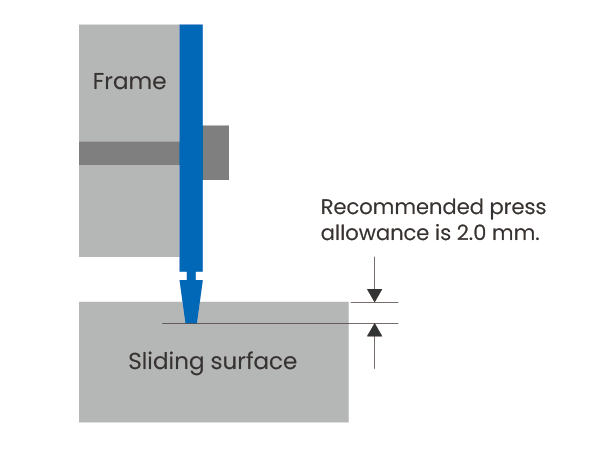

Recommended pressing allowance：2.0mm
Caution
- Please make design considering a press allowance of 2.0mm on the part drawing.
- Confirm on assembly drawings, etc. that a press allowance of 2.0mm overlaps with the steel plate.
