Star Wiper
Star Wiper Slide Type
Product Details
Constituent Materials
-

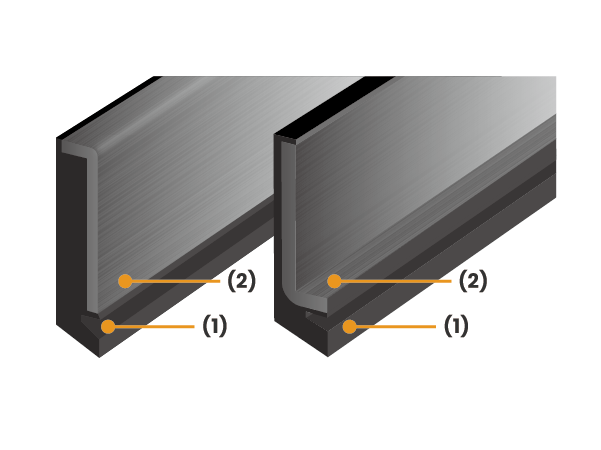

MK(straight)/LM(L-shaped)/MX(thin straight)
(1) NBR rubber
(2) Steel plate
Black anti-corrosion treatment on surface -

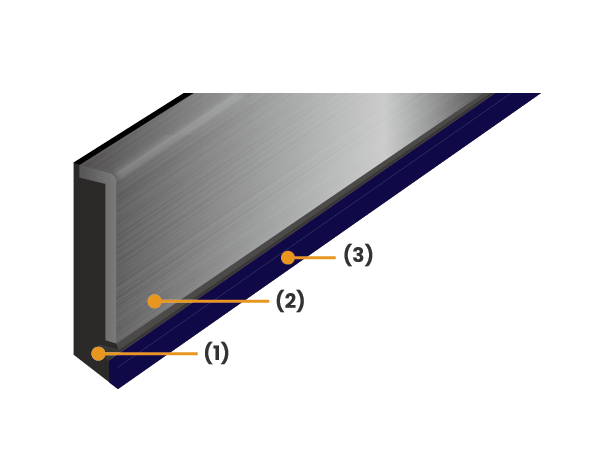

MKL(low sliding resistance)
(1) NBR rubber
(2) Steel plate
Black anti-corrosion treatment on surface(3) Special compounded rubber
Lowering the coefficient of friction and reducing sliding resistance
Features
-
- Contributes to maintaining the machining accuracy of machine tools that require high-precision machining.
- Uses NBR rubber that is oil-resistant and abrasion-resistant, and is highly durable.
- The surface of the steel plate is treated to prevent rusting in compliance with RoHS specifications.
- We also offer additional processing such as drilling and cutting.
- We can provide one-piece molded products that match the shape of the sliding bed.
- Because there are no seams in the seal, it has better sealing properties than standard products that have been processed, and it is also easy to install.
- We can also handle lip curl prevention.
Application Example

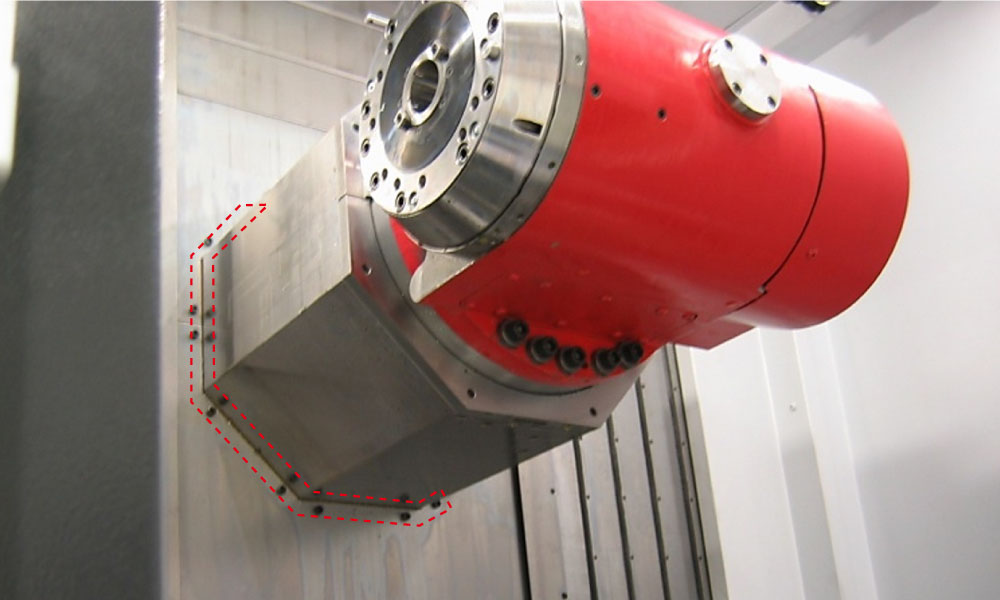

Suitable for scraping sliding beds of machine tools that require precision maintenance.
Specification
| Type | Product number | Overall length |
|---|---|---|
| MK (straight) |
MK-16-500 |
500 mm |
|
MK-18-500 |
500 mm |
|
|
MK-25-500 |
500 mm |
|
|
MK-30-500 |
500 mm |
|
|
MK-25-800 |
800 mm |
|
|
MK-30-800 |
800 mm |
|
| MKL (low sliding resistance) |
MKL-16-500 |
500 mm |
|
MKL-18-500 |
500 mm |
|
|
MKL-25-500 |
500 mm |
|
|
MKL-30-500 |
500 mm |
|
| LM (L-shaped) |
LML-18-250C |
150 mm × 250 mm |
|
LML-25-250C |
150 mm × 250 mm |
|
|
LMR-18-250C |
150 mm × 250 mm |
|
|
LMR-25-250C |
150 mm × 250 mm |
|
| MX (thin straight) |
MX-18-310 |
310 mm |
|
MX-25-310 |
310 mm |
|
|
MX-30-310 |
310 mm |
|
|
MX-40-310 |
310 mm |

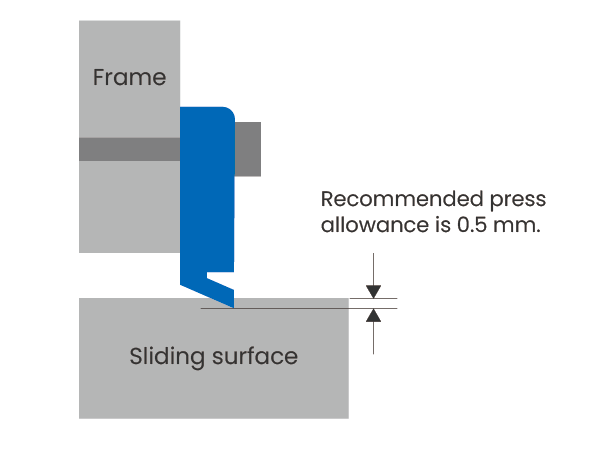

Recommended pressing allowance：0.5mm
Caution
- Please make design considering a press allowance of 0.5mm on the part drawing.
- Confirm on assembly drawings, etc. that a press allowance of 0.5mm overlaps with the steel plate.
