Timing Belts

MEGA TORQUE GⅡ

By using a carbon cord, MEGA TORQUE GⅡ has been able to suppress belt elongation and achieve high-load power transmission. In addition, by using a special rubber compound, the transmission capacity has been increased by approximately 1.5 times compared to the MEGA TORQUE G timing belt. As a result, the belt width can be made narrower. The use of a tooth fabric with a wear-resistant, low-friction treatment has also improved durability under heavy loads.

Product Details

Features

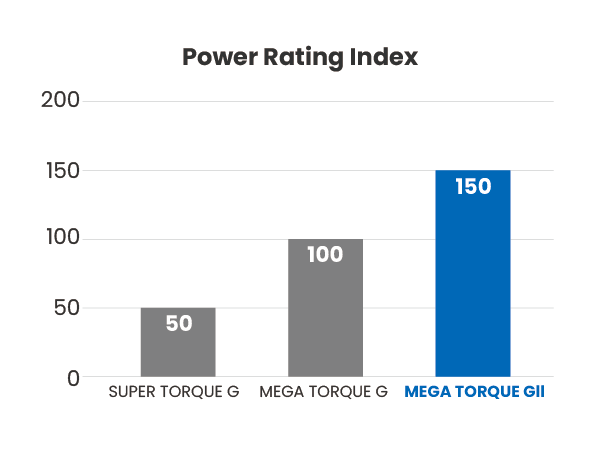

High Power Rating

With a transmission capacity 1.5 times that of the Mega Torque G, it achieves excellent durability and quietness.
High Jumping Torque

Compared to the Mega Torque G timing belt, it achieves a jumping torque characteristic that is approximately 1.6 times greater.

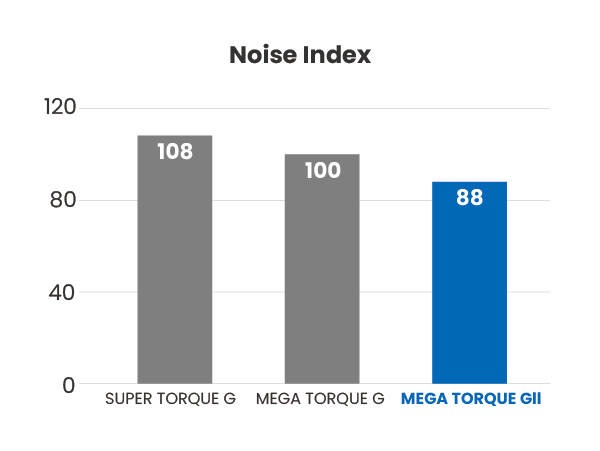

Low Noise

Compared to the Mega Torque G timing belt, noise has been reduced by approximately 12%.

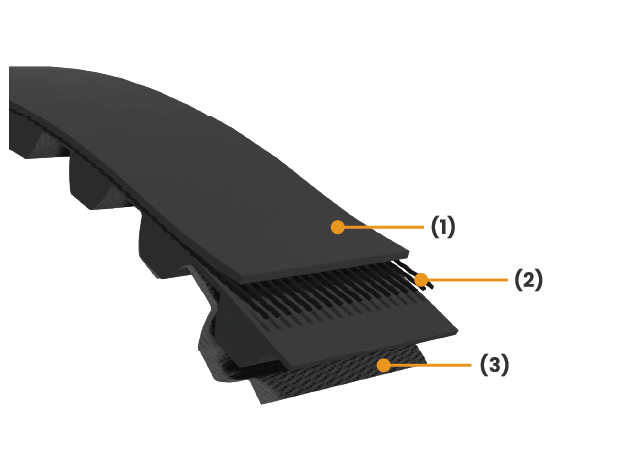

Constituent Materials

(1) Rubber
(2) Cord
(3) Tooth Fabric

	MEGA TORQUE G				MEGA TORQUE GⅡ	MEGA TORQUE GⅡP	MEGA TORQUE GⅢ		MEGA TORQUE EX
Belt Type	MTS3M	MTS5M	MTS8M	MTS14M	MTS8M	MTS14M	MTS8M	MTS14M	MTS3M	MTS5M
(1) Rubber	Chloroprene		High Hardness Synthetic Rubber		High Hardness Synthetic Rubber	High Hardness Synthetic Rubber	Super High Hardness Synthetic Rubber		HNBR
(2) Cord	Glass Fibre				Carbon	Carbon	Carbon		Carbon
(3) Tooth Fabric	Nylon (※Bareback)		Nylon		Nylon/Aramid	Nylon/Teflon	Nylon/Teflon		Nylon/Teflon	Nylon
Pulley Tooth Profile	Standard	Special	Standard		Special	Special	Standard		Special
