Flat Belts

FLEXSTAR J™Belts

  • FLEXSTAR J™Beltsサムネイル1
  • FLEXSTAR J™Beltsサムネイル1

Since this is an integrally molded seamless product with excellent flexibility and bending resistance, it can be used with small diameter pulleys, and smooth and stable rotation can be obtained.It demonstrates excellent performance in transmission, banknote and card conveyance, and is widely used in financial terminals, ATMs, ticket-vending machines, etc.

Contact us about this product

Product Details

Constituent Materials

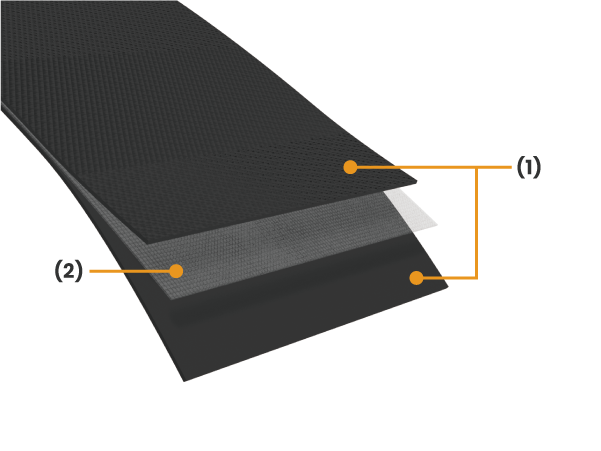

  • Low-modulus type

    Low-modulus type

    Low modulus type is suitable for bill, card, and coin transport.
    Patterned type is also available (JLU6-N and JLU6-D specifications).

  • JN JL JL3 JLU5
    Conveyor surface

    Smooth (polished)

    Flat (knitted fabric)
    Constituent materials (1) Rubber

    H-NBR

    Millable Urethane
    (2) Tensile element

    -

    Nylon

    Polyester
    Manufacturable width (mm)

    4～30

    5～30

    8～40

    8～40
    Thickness (mm)

    1.0/2.0/3.0/4.0

    0.7/1.0

    0.65/0.80/1.00/2.00

    0.65/0.80/1.00/2.00
    Manufacturable length (mm)

    60～1200

    60～2500

    60～798

    80～1025
    Min. pulley diameter (mm)

    8

    8

    8

    8

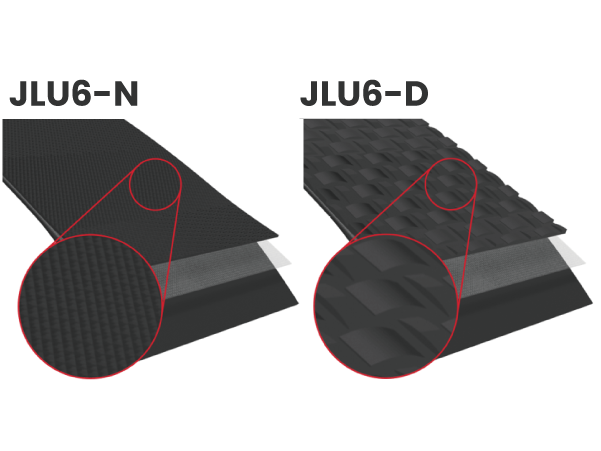

  • The JLU6 is equipped with a surface pattern to prevent slippage caused by metal powder adhesion during coin transport. This surface pattern allows for maintaining high grip strength over a long period.

  • JLU6-N JLU6-D
    Conveyor surface

    Cloth pattern (small)

    Cloth pattern (large)
    Constituent materials Rubber

    Millable Urethane
    Tensile element

    Polyester
    Manufacturable width (mm)

    4～30

    5～30
    Thickness (mm)

    1.0/2.0/3.0/4.0

    0.7/1.0
    Manufacturable length (mm)

    60～1200

    60～2500
    Min. pulley diameter (mm)

    8

    8

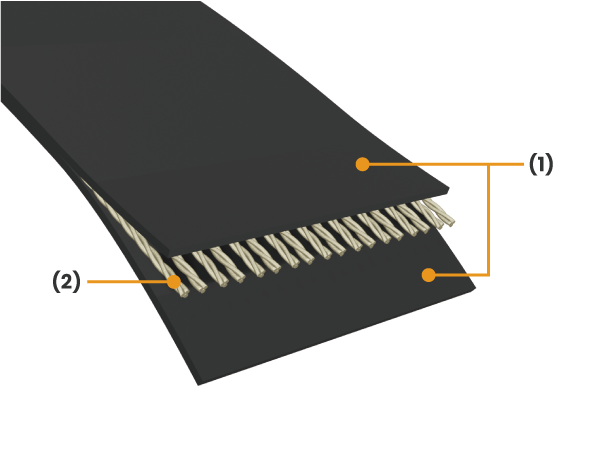

  • High-modulus type

    High-modulus type

    The high modulus type is suitable for light load transmission, bill and card transport. The polyester core wire reduces elongation and improves durability compared to the low modulus type.

    Tensile strength increases in the order of J3H, J6H, and J8H.

    (1) Rubber: H-NBR
    (2) Cord: Polyester

  • J3H J6H J8H
    Conveyor surface

    Smooth (polished)
    Constituent materials (1) Rubber

    H-NBR
    (2) Cord

    Polyester
    Manufacturable width (mm)

    8～30

    5～30

    8～40
    Thickness (mm)

    0.65/1.00

    0.7/1.0

    0.65/0.80/1.00/2.00
    Manufacturable length (mm)

    100～3000

    60～2500

    60～798
    Min. pulley diameter (mm)

    10

    8

    8
    Tensile strength(N/10mm width)

    ≧150

    ≧300

    ≧450

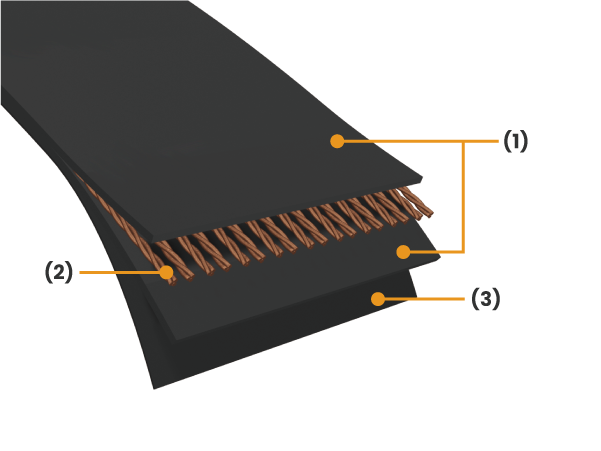

  • Ultra-high modulus

    Ultra-high modulus

    The ultra-high modulus type uses glass fibers with minimal elongation, characterized by high durability and flexibility.

  • J8GA J8GE
    Conveyor surface

    Smooth (polished)
    Constituent material (1) Rubber

    Chloroprene

    EPDM
    (2) Tensile element

    Glass code
    (3) Pulley side fabric

    Nylon
    Manufacturable width (mm)

    3～1000

    3～100
    Thickness (mm)

    0.65/0.85

    0.65/0.85
    Manufacturable length (mm)

    155～2000

    155～2000
    Min. pulley diameter (mm)

    10

    10
  • Breakup and conveying for ceramic chips type

    Breakup and conveying for ceramic chips type

    This product is developed for the transport and separation of ceramic chips, such as chip resistors. It is flexible and highly durable, making it ideal for transporting ceramic chips. You can choose the specifications from the lineup based on the size of the ceramic chips and the need for conductivity.

  • J8GC1 J8GC5 J8GC6 J8GC8 J8GC9 J8GD
    Conveyor surface Flat (fabric)
    Constituent materials (1) Rubber

    H-NBR

    Chloroprene
    (2) Tensile element

    Glass code
    (3) Surface fabric

    Nylon

    Special nylon

    Nylon
    (4) Pulley side fabric

    Nylon
    Manufacturable width (mm)

    3～1000

    3～100

    3～100

    3～100

    3～100

    3～100
    Thickness (mm)

    0.7

    0.57

    0.64

    0.62

    0.73

    1.1
    Manufacturable length (mm)

    155～2000

    155～2000

    155～2000

    155～2000

    808～1500

    155～2000
    Min. pulley diameter (mm)

    10

    10

    10

    10

    10

    10
