Couplings
HYPERFLEX™Coupling
Product Details
Structure

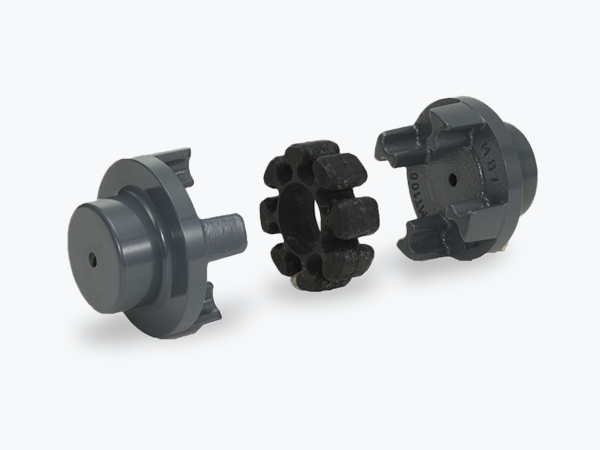

●MT type
- Flange material is gray cast iron (FC250).
- Two types of materials are available for the elastic body: synthetic rubber and oil- and abrasion-resistant polyurethane.

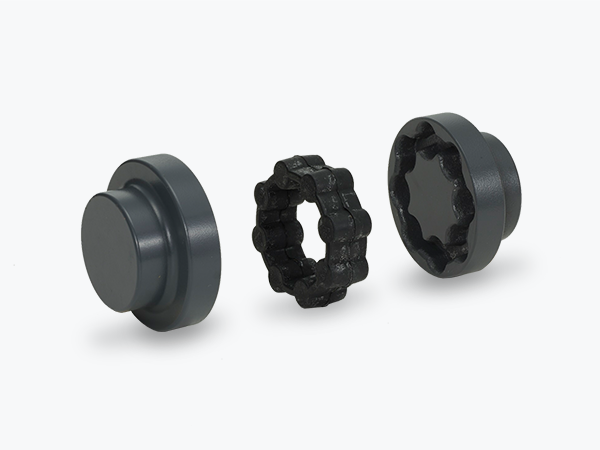

●MH type
- Flange material is gray cast iron (FC200).
- Standard elastic body type consisting of synthetic rubber alone and super type (MHP type) consisting of synthetic rubber with an iron core for reinforcement.
-

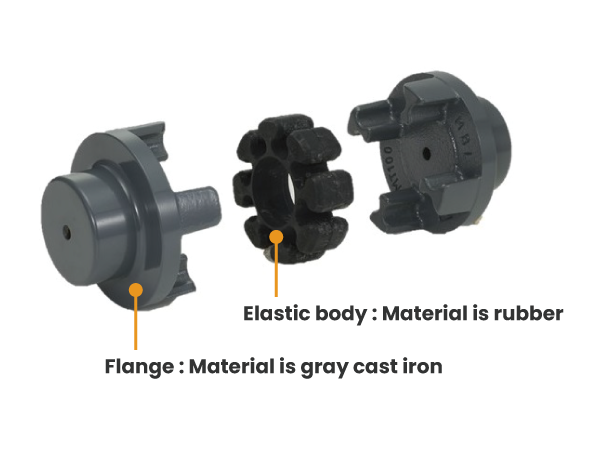

MT type（Elastic body: synthetic rubber）
-

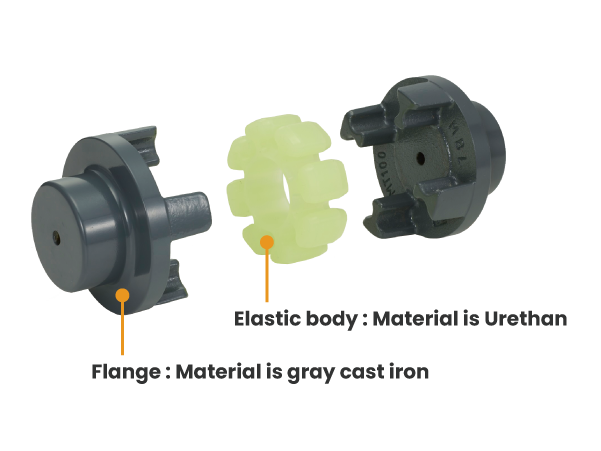

MT type（Elastic body: polyurethane）
-

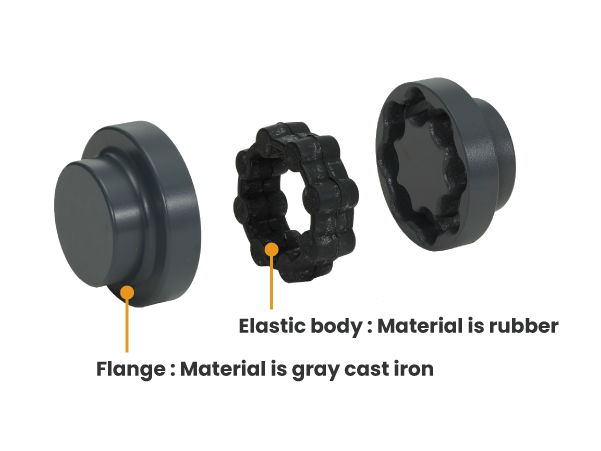

MH type（Elastic body: synthetic rubber ）
-

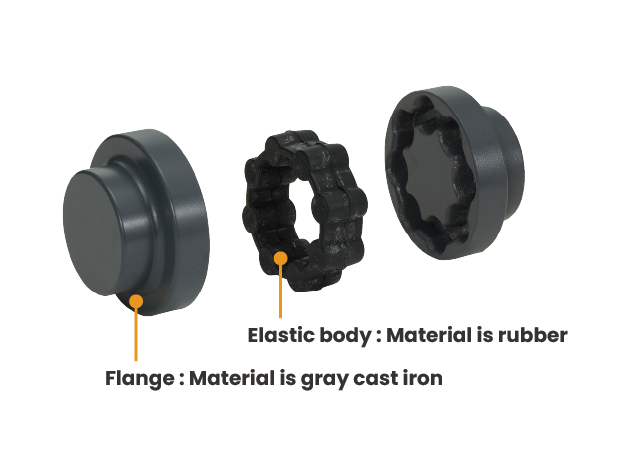

MHP type（Elastic body: synthetic rubber with an iron core）
※The elastic body with reinforcing steel core is no different from the standard from the outside.
Features
-
●MT type
- Suitable for all kinds of applications.
- Compact size with large transmission torque.
- Easy-to-install and maintenance-free.
- The polyurethane elastic body features excellent oil and abrasion resitance.
●MH type
- High flexibility and excellent shock absorption.
- Applicable as a torque limiter.
Characteristic table
| Materials | Torque (N·m) |
No. of Rotations (rpm) |
Shaft Hole Diameter (mm) |
Flexibility | Oil Resistance | Elastic Replacement | ||
|---|---|---|---|---|---|---|---|---|
| Flange | Elastic Body | |||||||
| MT type |
Cast Iron |
Rubber |
Max 5.88 ~980 |
3,600~6,000 |
Φ7~Φ80 |
◯ |
◯ |
◯ |
|
Cast Iron |
Urethane |
Max 1.08 ~11,300 |
3,600~6,000 |
Φ7~Φ80 |
◯ |
◎ |
◯ |
|
| MH type |
Cast Iron |
Rubber |
Max 0.98~245 |
3,600~6,000 |
Φ7~Φ80 |
◯ |
◯ |
◯ |
|
Cast Iron |
Rubber |
Max 1.96 ~637 |
3,600~6,000 |
Φ7~Φ80 |
◯ |
◯ |
◯ |
|
◎：especially suitable, ○：suitable
