Light Conveyor Belts (Industrial & Logistics)

High-Performance Inclined Conveying belt

"High-Performance Inclined Conveying belt" has a herringbone pattern on its surface. It has excellent grip and even if dust adheres to it, the conveyed material does not slip easily, and it is possible to convey it at a slope of about 30 degrees. In addition, it is designed to reduce noise caused by contact between the belt surface and the pulley.

Lineup

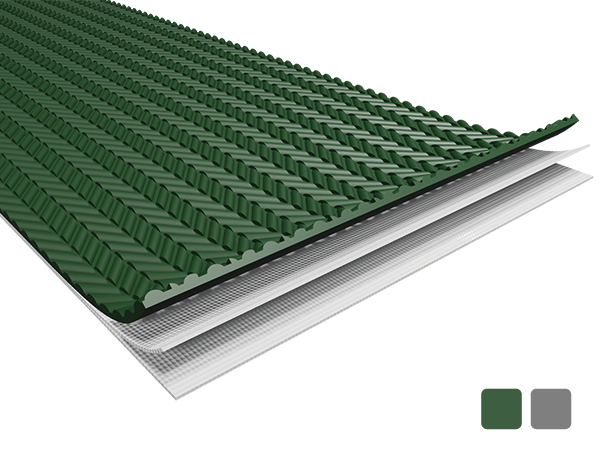

2-ply special elastomer

Inclined conveyor lines at distribution terminals, airports, newspaper distribution centers, etc.

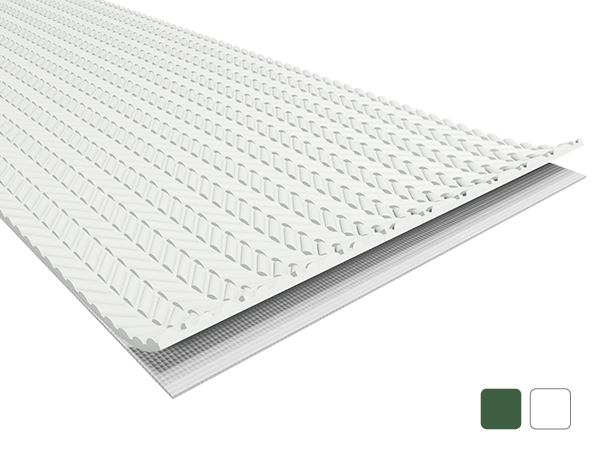

1-ply special polyurethane

Inclined conveyor lines for packaging and cardboard at food factories

Product Details

Features

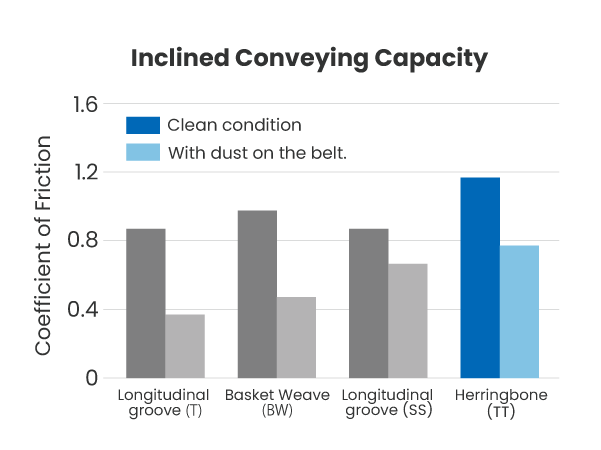

High Inclined Conveying Capacity

The High-Performance Inclined Conveying belt is designed so that dust does not accumulate in the areas where the conveyed material comes into contact with it, and even if dust does adhere, it maintains a high conveying capacity.
Quietness of surface pattern

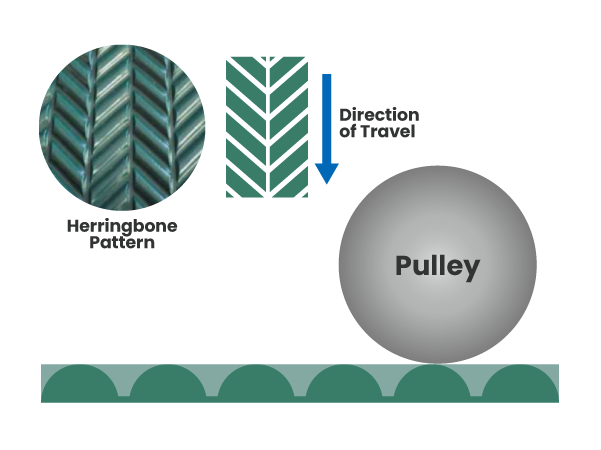

The contact surface between the belt and pulley is continuous in the direction of travel, which suppresses contact noise. As a result, it is possible to greatly reduce the noise generated when the belt surface and pulley come into contact, such as with snubbers, bend pulleys, and rollers.

Application Example

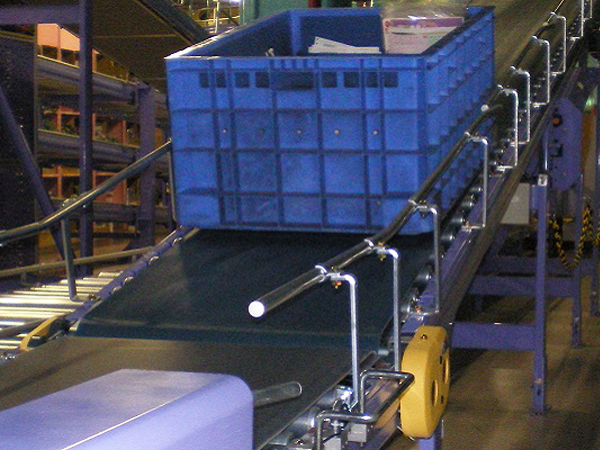

Special elastomer: Inclined conveyor lines in logistics terminals, airports, newspaper distribution centers, etc. Special polyurethane: Inclined conveyor lines in food factories, packaging, etc.
