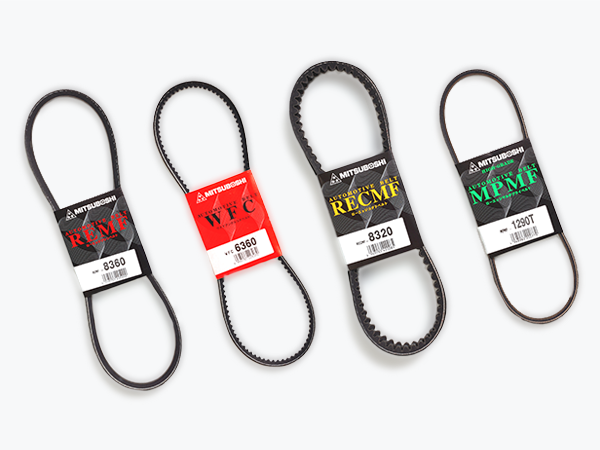

Raw Edge V-belts

It is used in a wide range of engines, from light cars to passenger cars, trucks, buses, and construction machinery, and is also called a fan belt.
It is used in harsh load fluctuation and high-temperature environments, so it has excellent heat resistance, abrasion resistance, and deformation resistance.

Product Details

Constituent Materials

Raw Edge Plain V-belts

The belt sides are made of exposed rubber. This gives them a strong grip and high transmission capacity.

(1) Fabric
(2) Tensile cord
(3) Rubber
(4) Fabric/Rubber
Raw Edge Multi-ply V-belts

These belts have a structure in which multiple layers of canvas are laminated on the bottom surface, as opposed to Raw Edge Plain V-belts. This prevents excessive grip between the belt and pulley, and suppresses noise.

(1) Fabric
(2) Tensile cord
(3) Rubber
(4) Fabric/Rubber
Low edge cog belt

The cog shape of the bottom of the belt improves flexibility and allows for a longer life.

(1) Fabric
(2) Tensile cord
(3) Rubber
(4) Fabric/Rubber

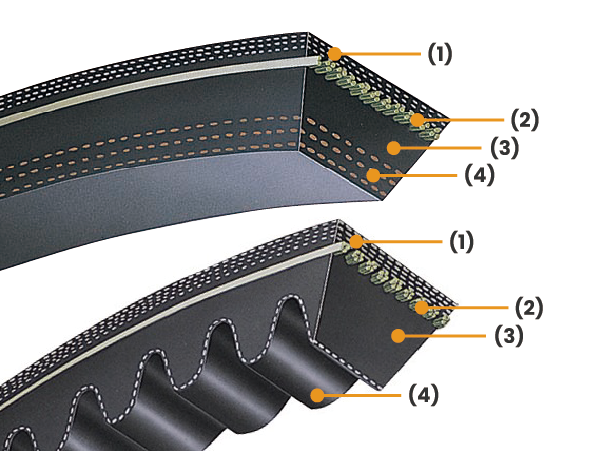

Low edge wide angle belt (multi-ply, cog)

By widening the angle of the belt, it absorbs fluctuations in engine rotation. It is mainly used in small commercial vehicles with diesel engines.

(1) Fabric
(2) Tensile cord
(3) Rubber
(4) Fabric/Rubber

Raw Edge V-belts

Product Details

Constituent Materials

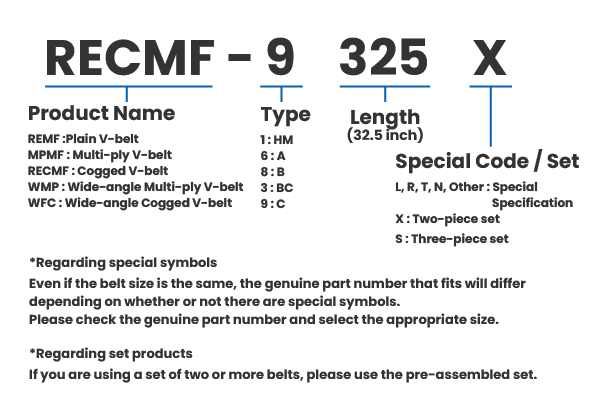

Product Code

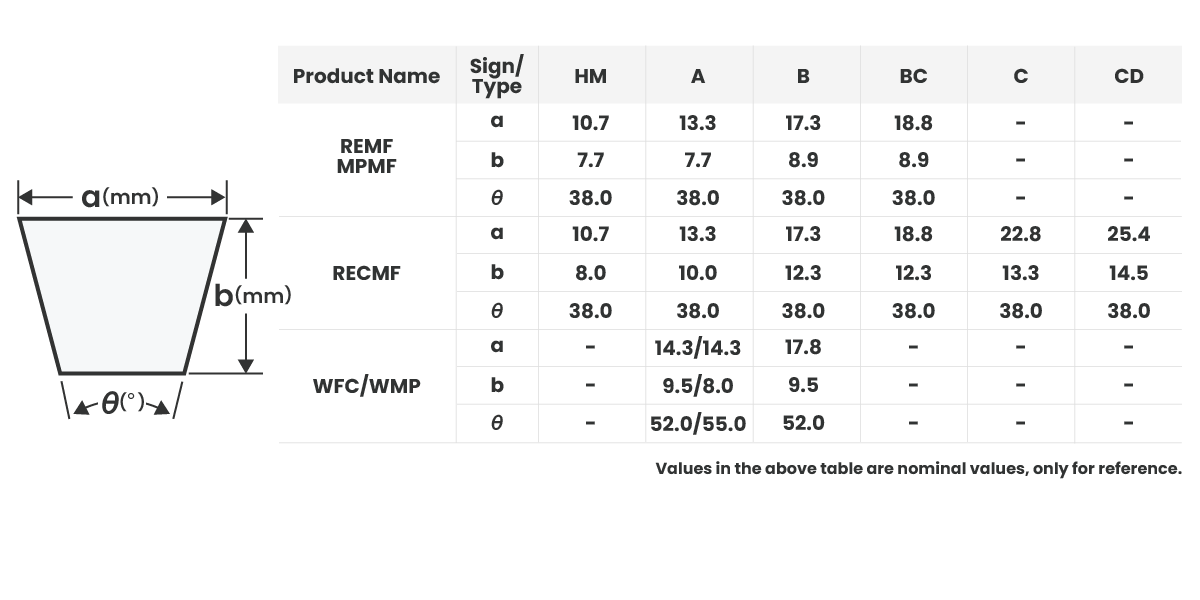

Cross Sectional Dimension
