Automobile and Motorcycle Transmission Belts and Related Products

Automotive Aftermarket

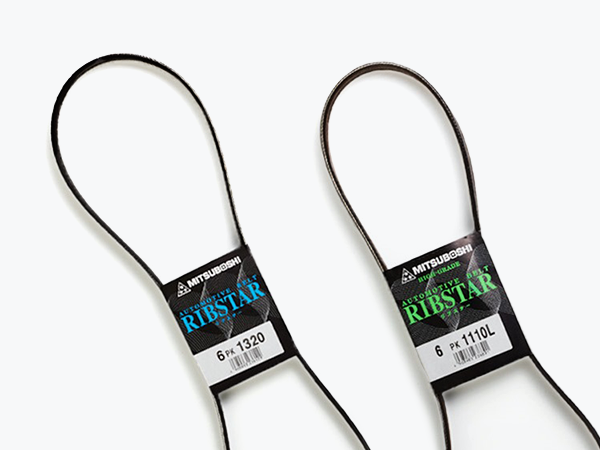

RIBSTAR Belts

  • RIBSTAR Beltsサムネイル1
  • RIBSTAR Beltsサムネイル2
  • RIBSTAR Beltsサムネイル1
  • RIBSTAR Beltsサムネイル2

It is used in a wide range of engines, from light cars to passenger cars, trucks, buses, and construction machinery, and is also known as a fan belt.
It uses EPDM material, which has superior heat resistance, cold resistance, and ozone resistance compared to conventional CR (chloroprene) material.
It uses a rubber compound with excellent quietness.
Compared to low edge belts, these belts have a thinner belt thickness and superior flexibility, so they can be used with small diameter pulleys and back pulleys.
We have a wide range of sizes and grades available.

Product Details

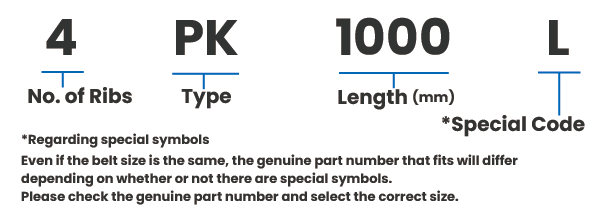

Product Code

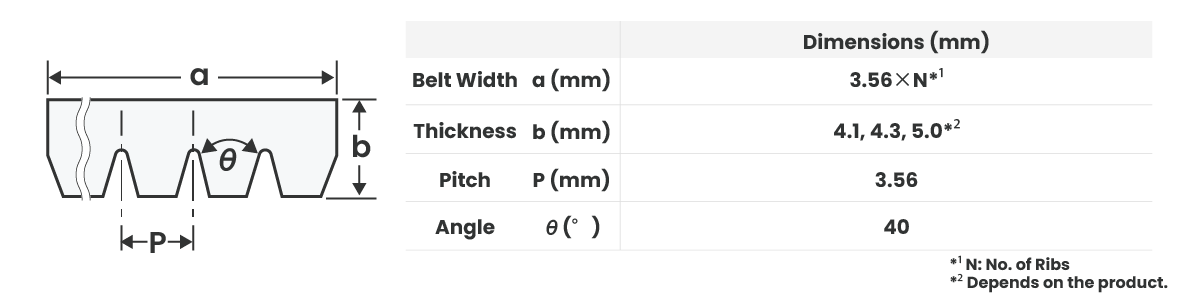

Cross Sectional Dimension

Constituent Materials

  • RIBSTAR Belts

    RIBSTAR Belts

    (1) Fabric
    (2) Tensile cord
    (3) Rubber

Caution

When the ribbed surface becomes worn and sharp, it is time to replace it.
If the wear progresses further and the Tensile cord becomes visible in the ribbed groove, it is a dangerous situation.
